Seimitsu LS-32-01 Joystick for Tatsunoko Vs Capcom Wii, SE and Brawlstick Sticks

Q: I'm looking to change out my joystick in my T Vs. C stick for the Wii. Will the Seimitsu LS-32-01 Joystick fit without fabrication? If not what would be the correct model?

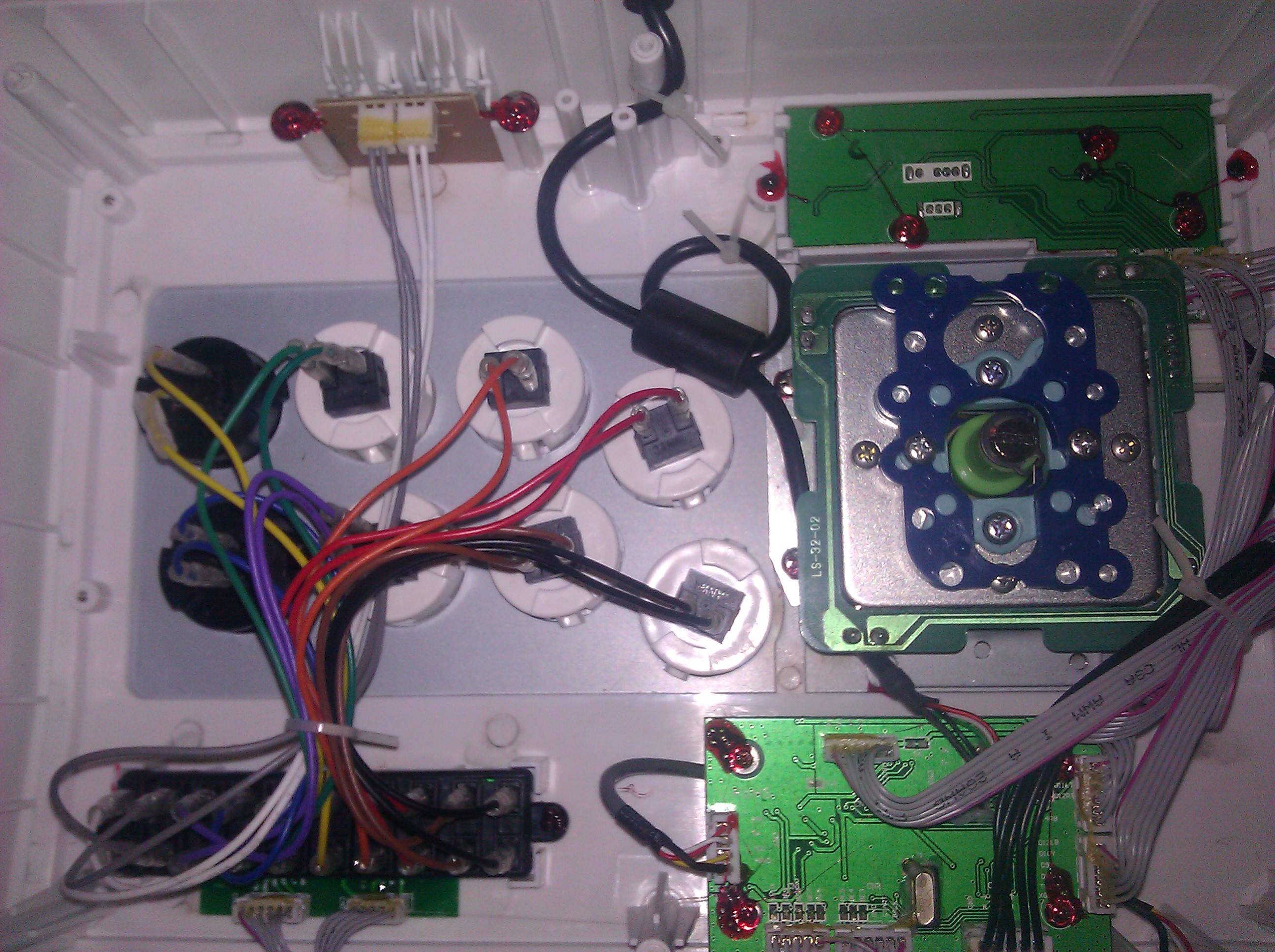

A: YES The LS-32 will fit!!! The first thing you will notice is that you will need to mount this joystick sideways due to the plate mounting screw holes. Secure the joystick with at minimum two (2) screws. Once the joystick is secured, remove the rectangular blue restrictor plate by unscrewing the two (2) screws. Adjust the joystick PCB. Remove the four (4) screws that are holing down the PCB. Pull the metal cover off to reveal the micro switches. Once everything is exposed, lift straight up and rotate the PCB one quarter turn counter clock-wise so the connector is now in the upper right corner. Place the PCB back down. Secure the joystick PCB by re-installing the cover plate down with the four (4) screws.
Once the plate has been installed, attach the rectangular blue restrictor play and screw it down with the two (2) screws.
Plug your white joystick harness plug in but make sure it is plugged in UPSIDE DOWN (opposite of the original joystick that was plugged in). Install the dust washer and screw down your ball top.


For additional info and pictures on this project go to


Thanks, Jangofatt!!
